LiFePo4
Battery Packs
 |
|

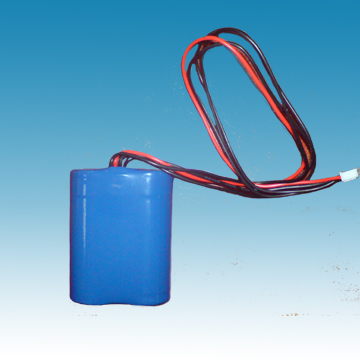

SNO-26650F
with
Connector
and PCB
Embedded
|
Model:SNO-26650FCP
Type: LiFePo4
Battery Packs
Configuration:2S1P
(2cells)
Capacity: 3000mAh
Nominal voltage:
6.4V
Pack
dimension: 26x52x65mm
Weight: 160g
Internal impedance
(20°C±5°C): ≤100mΩ
Available for any
mobile or digital
devices, such as
power tool, wireless
Pose machine,
medical equipment,
Medical treatment
bed/wheel chair,
Golf cart, Miner's
lamp
other
portable devices.
|
|
 |
|

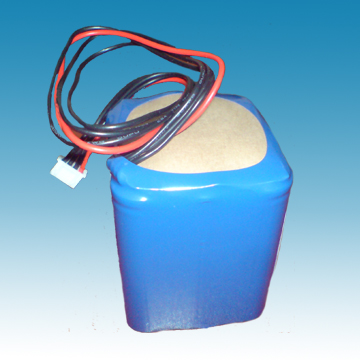

SNO-18650F
with
Connector
and PCB
Embedded
|
Model:SNO-18650FCP
Type: LiFePo4
Battery Packs
Configuration:3S3P
(9cells)
Capacity: 3000mAh
Nominal voltage:
6.4V
Pack
dimension: 54x54x65mm
Weight: 290g
Internal impedance
(20°C±5°C): ≤150mΩ
Available for any
mobile or digital
devices, such as
power tool, wireless
Pose machine,
medical equipment,
Medical treatment
bed/wheel chair,
Golf cart, Miner's
lamp
other
portable devices.
|
|
|
 |
|

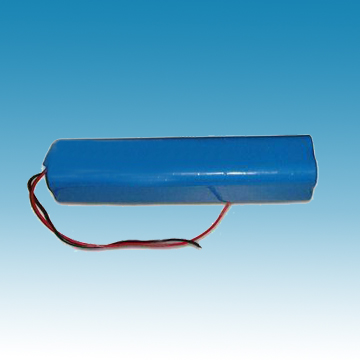

SNO-42110F
with
wires
PCB
Embedded
|
Model:SNO-42110FW
Type: LiFePo4
Battery Packs
Configuration:4S1P
(4cells)
Capacity: 10Ah
Nominal voltage: 12V
Pack
dimension: 84x84x110mm
Weight: 1.5kg
Internal impedance
(20°C±5°C): ≤5mΩ
Available for any
mobile or digital
devices, such as
power tool, medical
equipment, Medical
treatment bed/wheel
chair, Golf cart,
other
portable devices.
|
|
 |
|

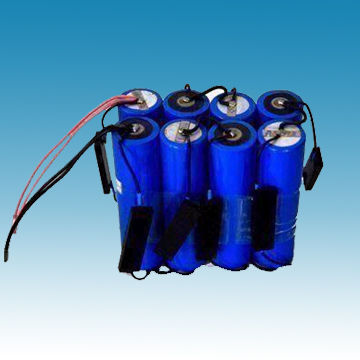

SNO-42110F
with
wires
and PCB
Embedded
|
Model:SNO-42110FW
Type: LiFePo4
Battery Packs
Configuration:8S1P
(8cells)
Capacity: 10Ah
Nominal voltage: 24V
Pack
dimension: 84x168x110mm
Weight: 2.8kg
Internal impedance
(20°C±5°C): ≤5mΩ
Available for any
mobile or digital
devices, such as
power tool, medical
equipment, Medical
treatment bed/wheel
chair, Golf cart,
other
portable devices.
|
|
 |
|

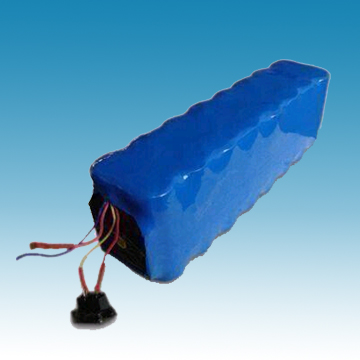

SNO-42110F
with
Connector
and PCB
Embedded
|
Model:SNO-42110FC
Type: LiFePo4
Battery Packs
Configuration:16S1P
(16cells)
Capacity: 10Ah
Nominal voltage: 48V
Pack
dimension: 242x178X111mm
Weight: 6.25kg
Internal impedance
(20°C±5°C): ≤5mΩ
Offers battery pack,
BMS, and charger as
all-in-one solution
Available for any
mobile or digital
devices, such as LED
light, power tool,
wireless Pose
machine, medical
equipment, Miner's
lamp other
portable devices.
|
|
|
|
