Introduction
SNO-104050P with Connector and PCB Embedded

 Model:SNO-104050PCN
 Model:SNO-104050PCN Capacity:2000mAh
 Capacity:2000mAh Nominal voltage:3.7V
 Nominal voltage:3.7V Max continuous discharge current:2A
 Max continuous discharge current:2A Max charge current:2A
 Max charge current:2A Internal impedance (20°C±5°C):≤200mΩ
 Internal impedance (20°C±5°C):≤200mΩ Pack dimension:10.2 x 41.0 x 52.0mm
 Pack dimension:10.2 x 41.0 x 52.0mm Weight:45g
 Weight:45g Connector: MOLEX 0355070300
 Connector: MOLEX 0355070300 NTC: 10KΩ
 NTC: 10KΩ Available for portable computers, video cameras, portable DVD player, two-way radios and POS
 Available for portable computers, video cameras, portable DVD player, two-way radios and POS

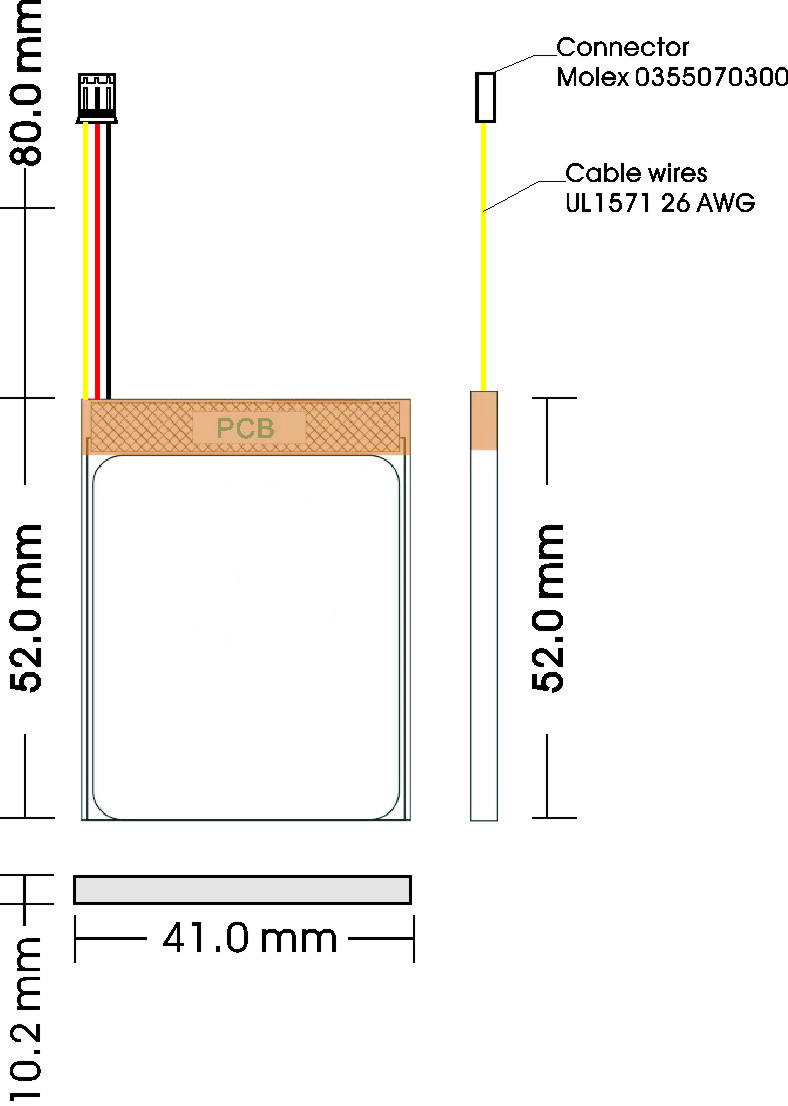

	  Drawings
 Drawings
