3.7V/820mAh li-ion polymer battery packs
Update: 2015/6/29 View:
- Brand: Starnovo
- Type: SNO-553445PCN
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Introduction
SNO-553445P with Connector and PCB Embedded
Model: SNO-553445PCN
Capacity:820mAh
Nominal voltage: 3.7V
Max discharge current: 820mA
Max charge current: 820mA
Internal impedance (20°C±5°C): ≤250mΩ
Pack dimension: 5.5 x 34.5 x 56.5mm
Weight: 20g
Wires: UL1571, 28AWG, 100MM, BY right side
NTC: 10KΩ,
Connector: MOLEX51021-0300

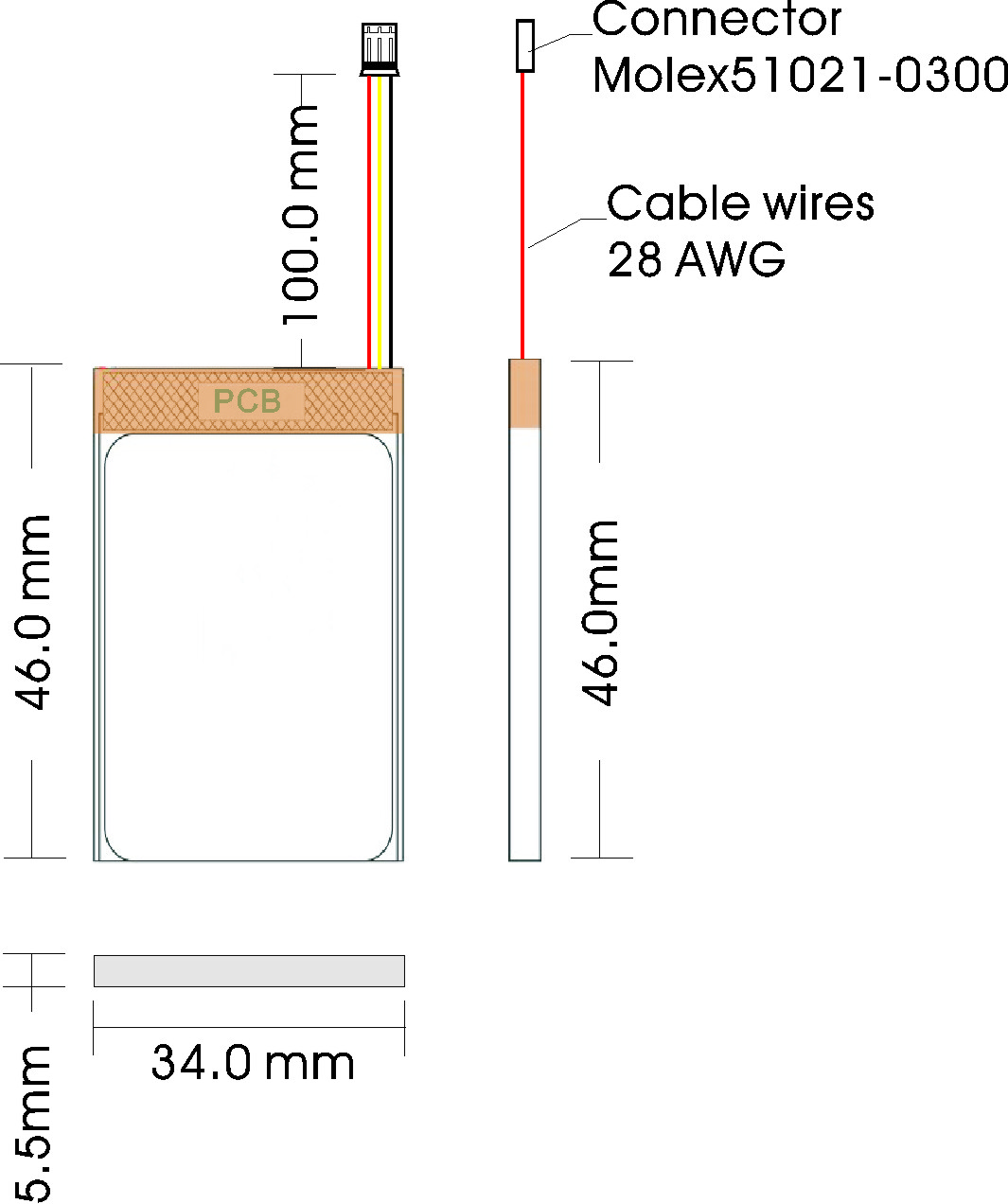

Drawings:
